Transform your Ineos Grenadier into a highly capable, trail-ready machine with the CAtuned Off-Road Custom Compressor Bundle. This upgraded package now features the ARB Brushless Single 12V Onboard Air Compressor (CKBLA12), delivering top-tier performance, reliability, and efficiency for every off-road scenario.
Designed specifically for Grenadier owners who need fast, dependable onboard air without sacrificing durability or installation quality.
ARB Brushless Performance
The ARB Brushless Single Air Compressor uses cutting-edge brushless motor technology to deliver exceptional airflow and long-term reliability. It provides significantly faster inflation times compared to standard compressors and is built for heavy-duty, high-demand use.
Performance:
- 4.59 CFM at 0 PSI
- 3.10 CFM at 29 PSI
- 100% duty cycle for continuous operation
This compressor is ideal for airing up tires after trail runs, managing air-dependent equipment, or supporting recovery operations.
Advanced Cooling and Electronic Control
This next-generation ARB compressor includes an integrated active cooling fan and advanced thermal management system to maintain consistent performance during extended operation.
Additional engineering features:
- Electronic speed control for steady airflow
- Internal diagnostics for overload, thermal, and over-voltage protection
- IP67 water and dust resistance for harsh environments
These protections ensure long-term reliability and safe operation in real off-road conditions.
Durable Construction
The ARB Brushless Single is engineered with a sealed, heavy-duty housing that protects internal components from dust, mud, and water. Its design prioritizes long-term use, making it one of the most dependable onboard compressors available.
It is backed by a 3-year ARB manufacturer warranty.

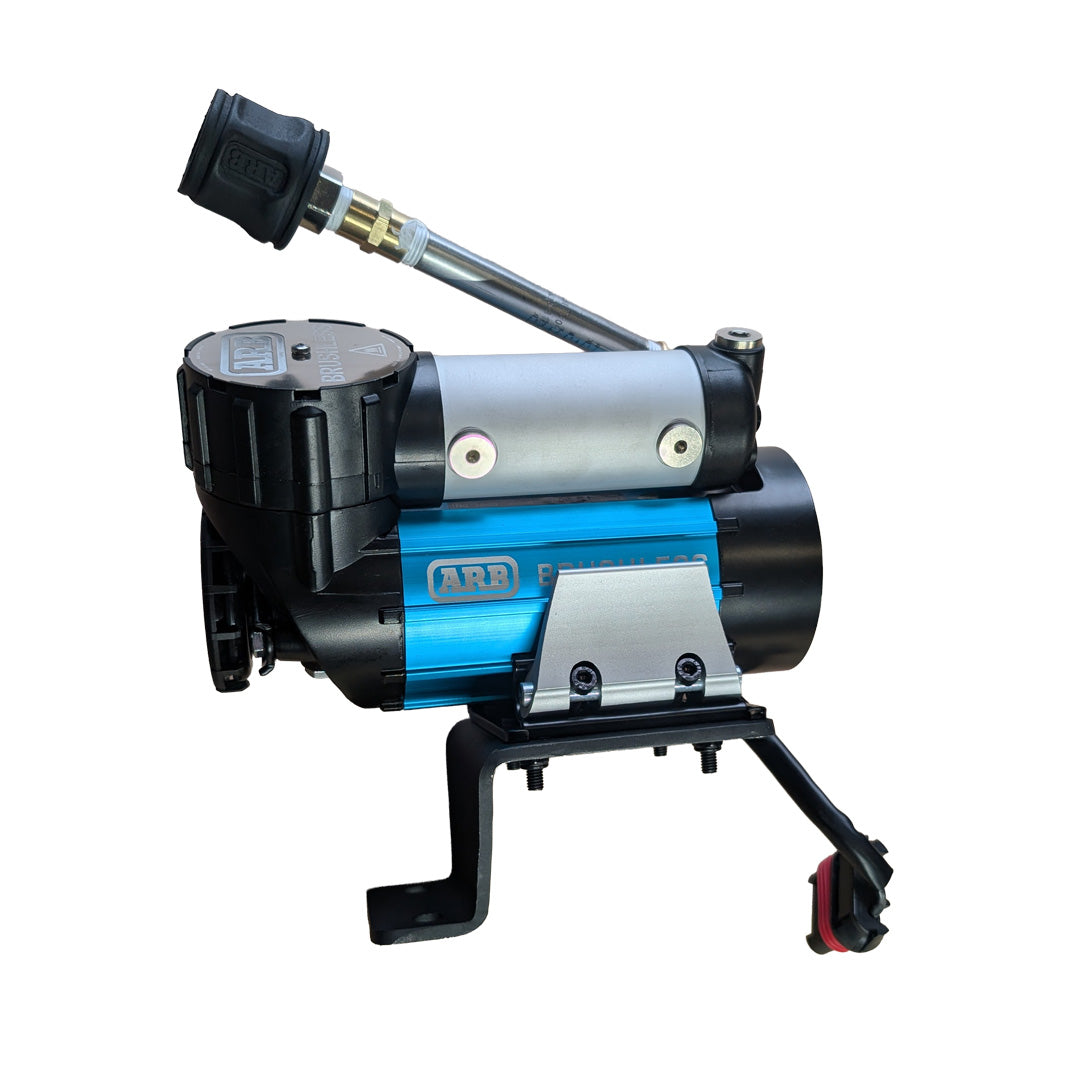

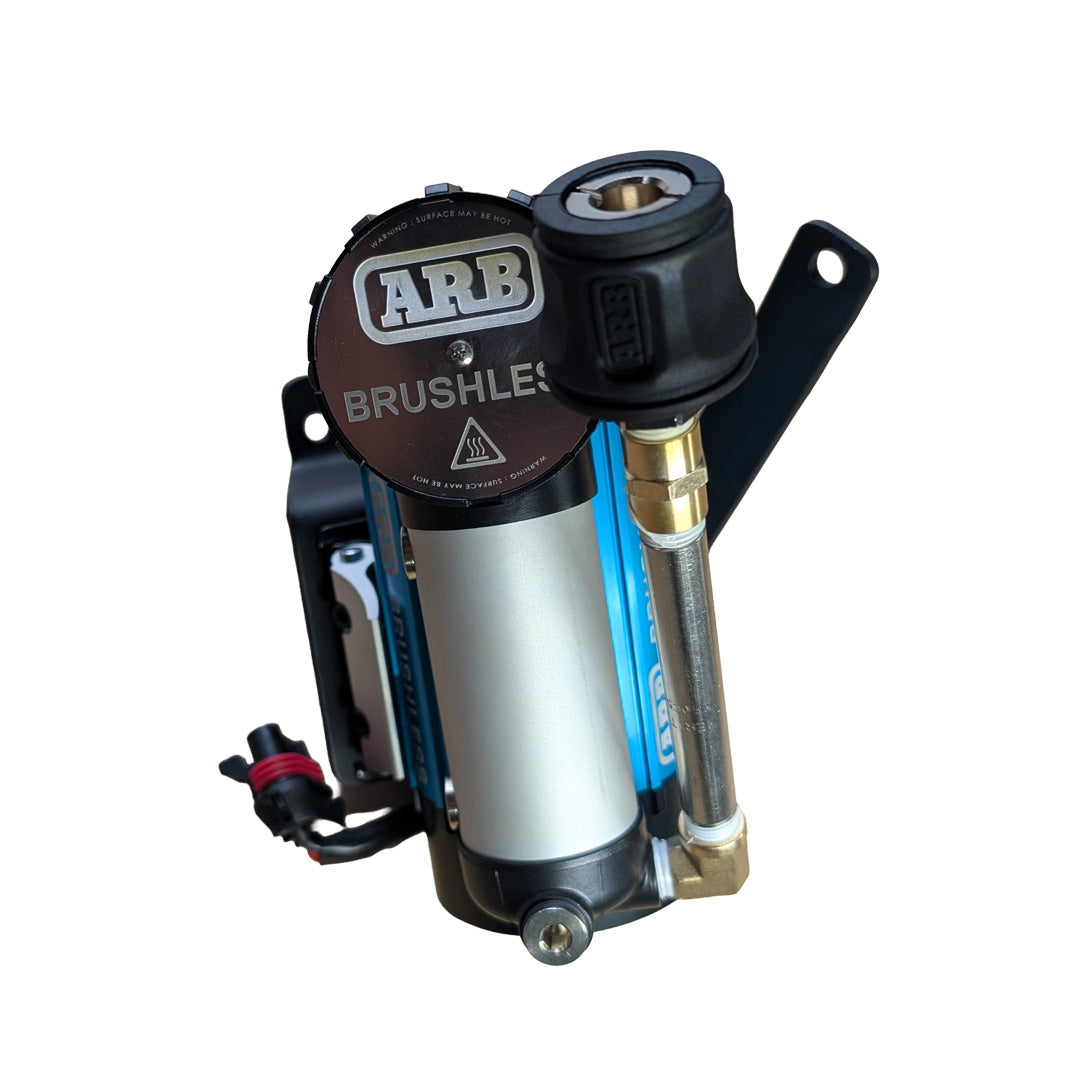

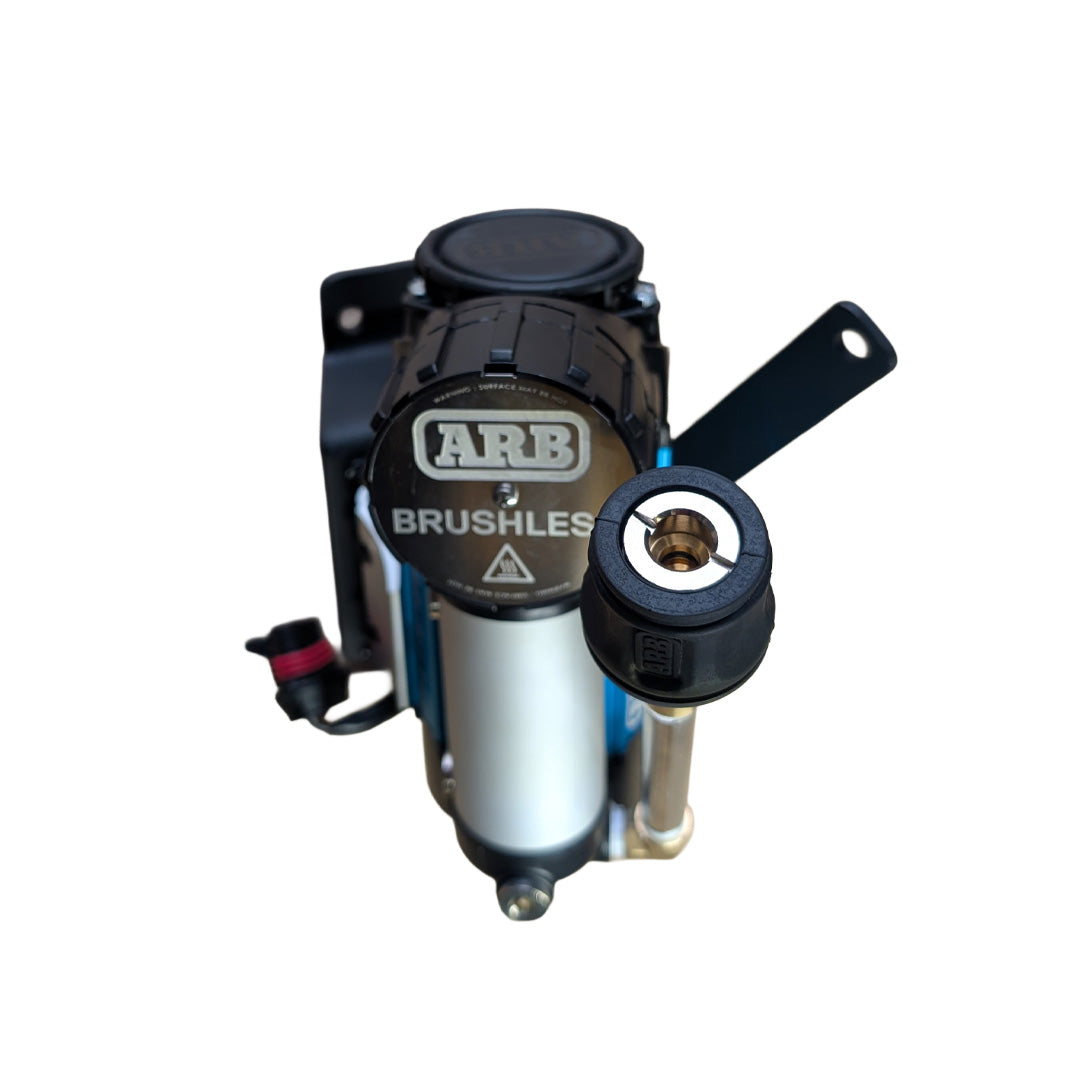

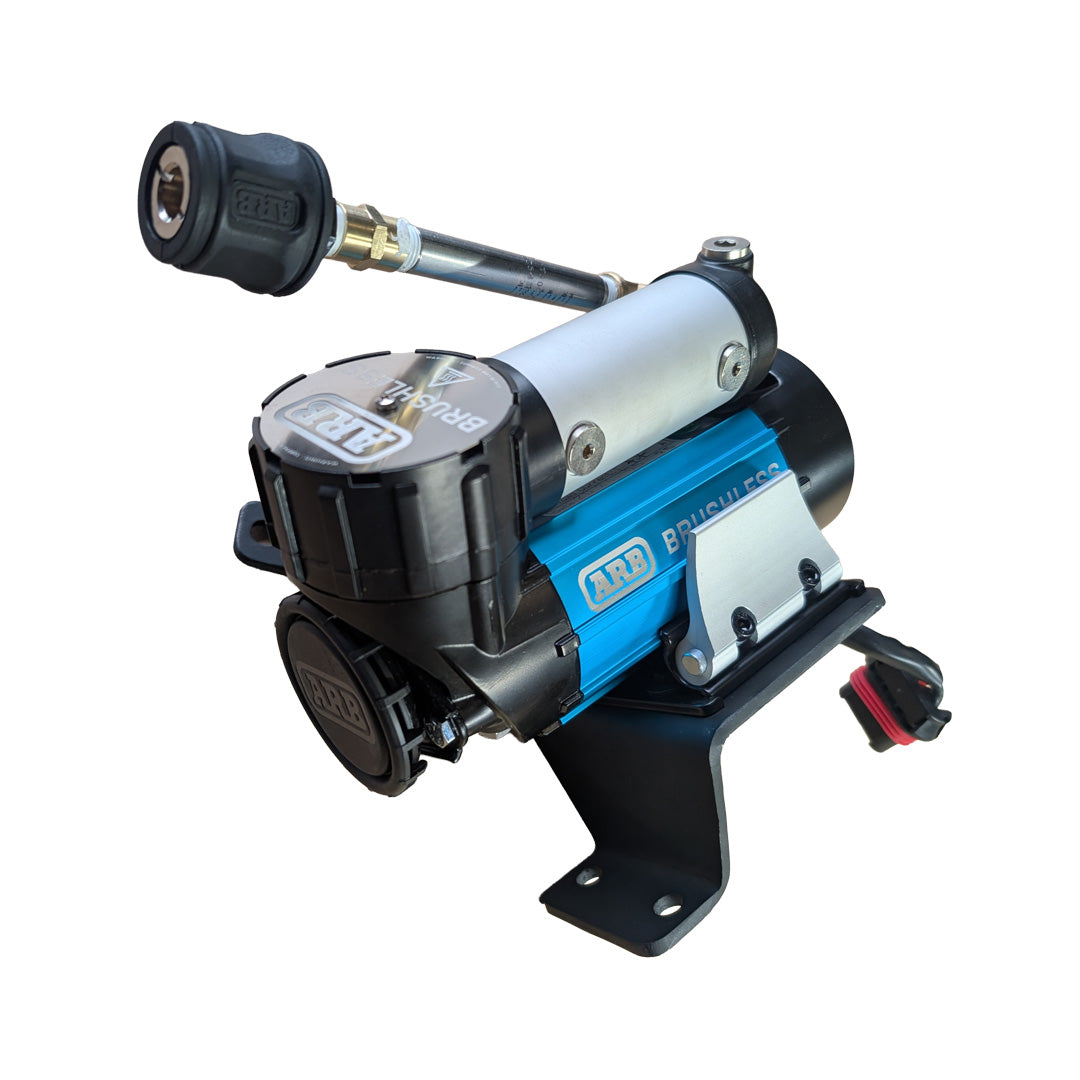

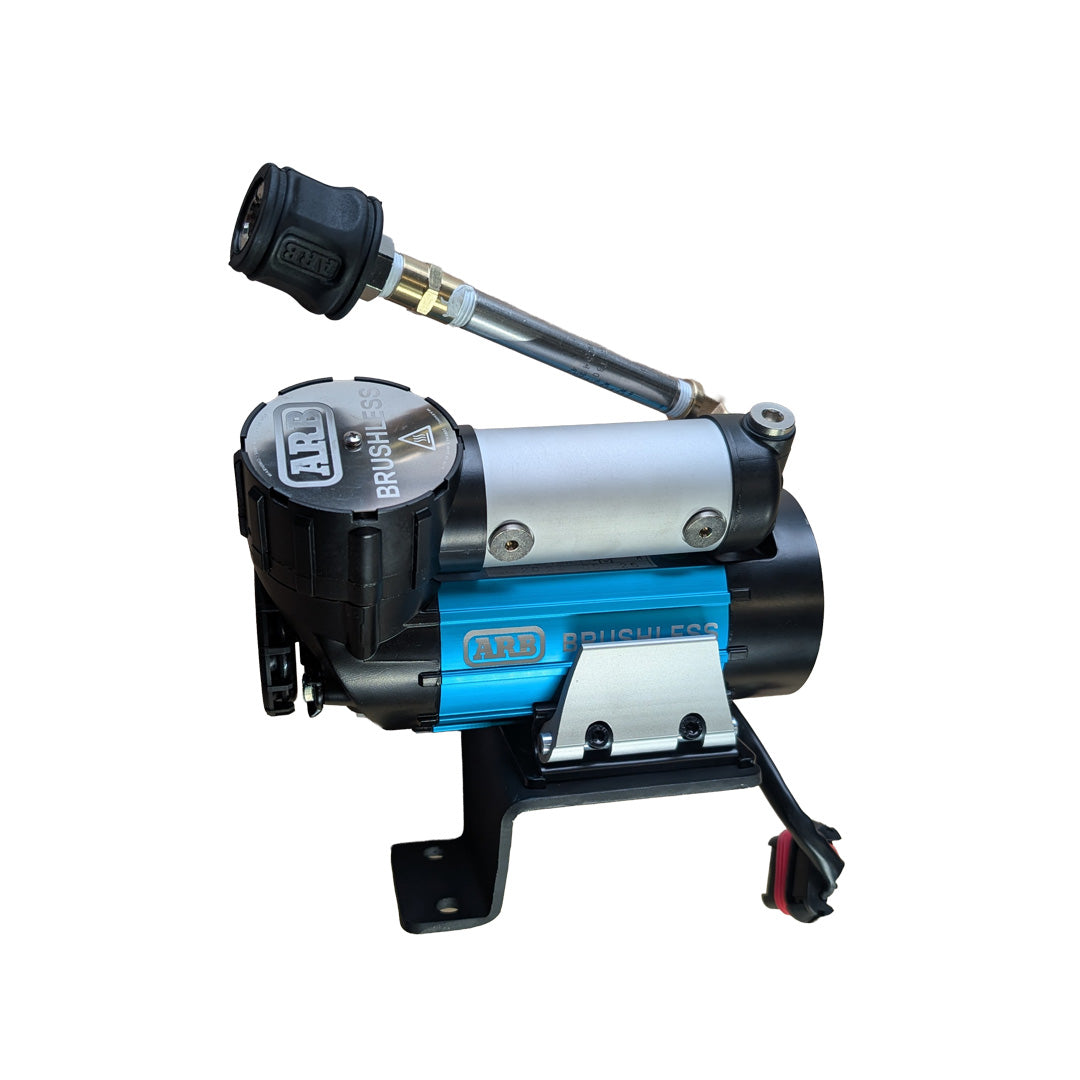

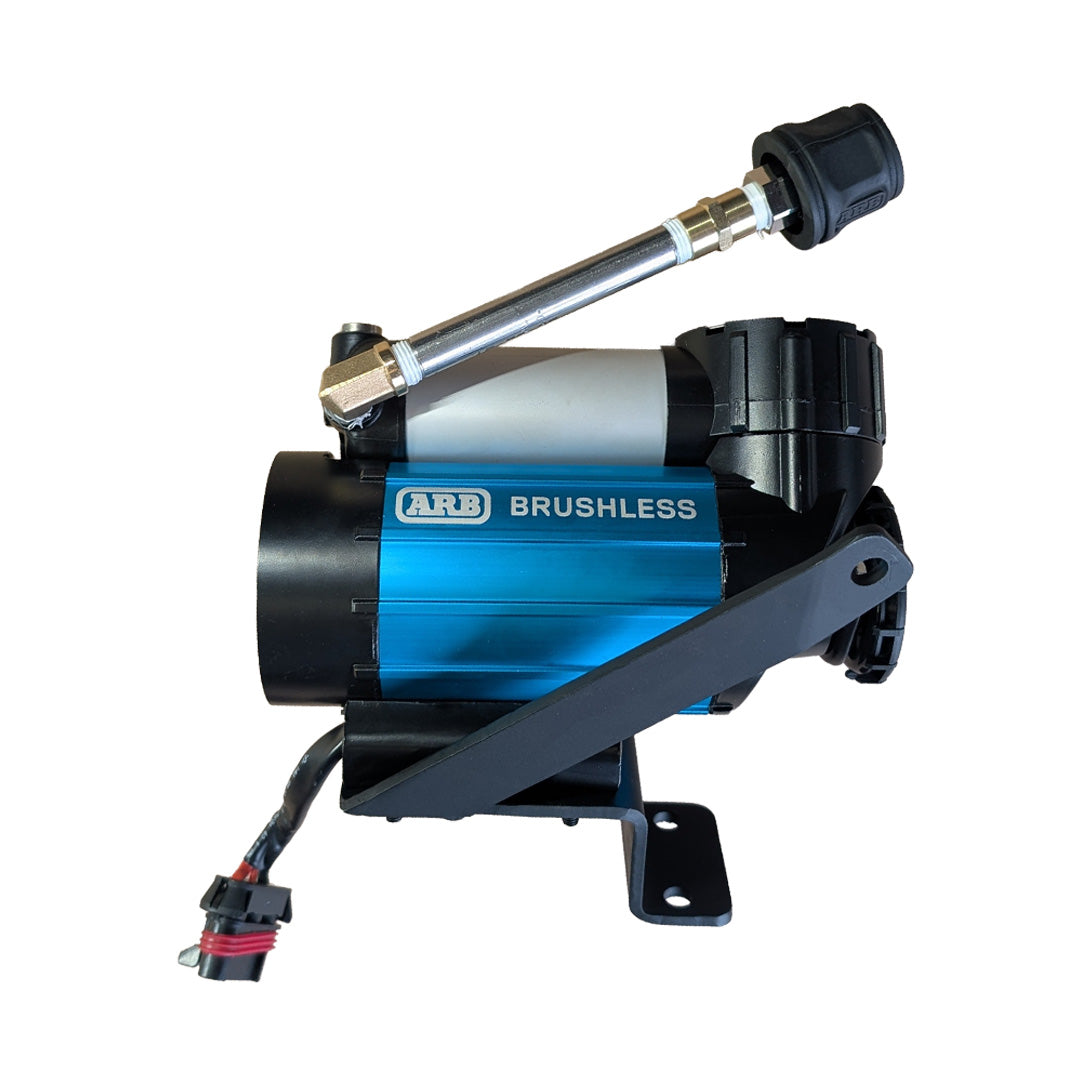

Complete Grenadier Installation Package
-
CAtuned Off-Road Custom Mounting Bracket: Purpose-built for the Ineos Grenadier (LHD only), this bracket provides a clean, factory-fit mounting location. No drilling is required, and the layout supports maximum airflow and serviceability.
-
Modified Plug-and-Play Wiring Harness: The included wiring harness is customized for the Grenadier platform, simplifying installation with an OEM-style fit. No cutting, splicing, or extra wiring is needed.
-
Dedicated On/Off Switch: A custom switch is included for easy access and intuitive control of the compressor from inside the vehicle.
Technical Specifications
-
Model: ARB Brushless Single Compressor (CKBLA12)
-
Voltage: 12V
-
Airflow: 4.59 CFM (0 PSI), 3.10 CFM (29 PSI)
-
Duty Cycle: 100%
-
Motor: High-efficiency brushless motor with active cooling fan
-
Protection Rating: IP67 water and dust resistance
-
Electronics: Speed control, diagnostics, overload and thermal protection
-
Compressor Dimensions: 5.5" × 8.3" × 3.5" (6.8 lbs)
-
Warranty: 3-year ARB manufacturer warranty
-
Bracket: CAtuned Off-Road custom Grenadier mount
-
Vehicle Fitment: Ineos Grenadier, Left Hand Drive only
